  BLIND FLANGE DIN 2527 PN16
stampa
din blind flange, din2527 flange
HYUPSHIN FLANGES
1. Standard: DIN 2527, BlindFlanshce
2. Type:
Blind Flange, Blank Flange (Flat Face)
3. Pressure:
PN16
4. Size:
DN15 - DN2000, larger Sizes available on request
5. Raw Material:
C22.8, RSt37.2, S235JRG2, C21, A105
6. Process:
Forged, Stamped
7. Basic requirements for Material and Flange

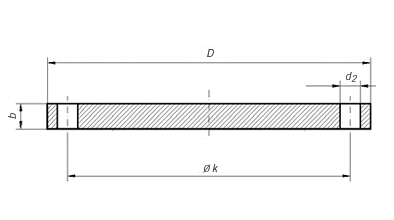

DIN 2527 PN16 BLIND FLANGE
Rated
Diameter
Flange Screws Weight
(7,85 Kg/dm3)
D b k Number Thread d2 Shape B
Kg
15 95 14 65 4 M 12 14 0,72
20 105 16 75 1,01
25 115 16 85 1,23
32 140 16 100 M 16 18 1,8
40 150 16 110 2,09
50 165 18 125 2,88
65 185 18 145 3,66
80 200 20 160 8 4,77
100 220 20 180 5,65
125 250 22 210 8,42
150 285 22 240 M 20 22 10,4
200 340 24 295 12 16,1
250 405 26 355 M 24 26 24,9
300 460 28 410 35,1
350 520 30 470 16 47,8
400 580 32 525 M 27 30 63,5
500 715 36 650 20 M 30 33 102
NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696
