  SLIP ON FLANGE CLASS 600 철합후렌지접합개소
stampa
ansi, asme, b16.5, blind flange, blank flange, blrf flange, blff flange, 150lbs, 300lbs, 400lbs, 600lbs, 900lbs
HYUPSHIN FLANGES
1. 기준: ANSI B16.5, ASME B16.5
2. 종류:
Slip On Flange, SO Flange (Raised Face)
3. 압력등급:
Class 600
4. 사이즈:
1/2" - 24", larger Sizes available on request
5. 강철:
Carbon Steel: ASTM A105, A350
6. 생산공예:
Forged or Stamped
7. ASTM raw material specification

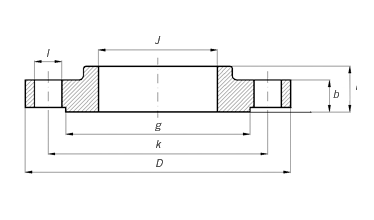

ANSI/ASME/ASA B16.5 600lb/sq.in. Flange WN-RF
ø
D
b
g
m
J
h
k
Holes
l
Kg.
1/2"
95,2
14,3
34,9
38,1
22,3
22,2
66,7
4
15,9
0,800
3/4"
117,5
15,9
42,9
47,6
27,7
25,4
82,5
4
19,0
1,400
1"
123,8
17,5
50,8
54,0
34,5
27,0
88,9
4
19,0
1,600
1 1/4"
133,3
20,6
63,5
63,5
43,2
28,6
98,4
4
19,0
2,100
1 1/2"
155,6
22,2
73,0
69,8
49,5
31,7
114,3
4
22,2
3,100
2"
165,1
25,4
92,1
84,1
62,0
36,5
127,0
8
19,0
3,700
2 1/2"
190,5
28,6
104,8
100,0
74,7
41,3
149,2
8
22,2
5,400
3"
209,5
31,7
127,0
117,5
90,7
46,0
168,3
8
22,2
7,300
3 1/2"
228,6
34,9
139,7
133,3
103,4
49,2
184,1
8
25,4
8,900
4"
273,0
38,1
157,2
152,4
116,1
54,0
215,9
8
25,4
11,800
5"
330,2
44,4
185,7
188,9
143,8
60,3
266,7
8
28,6
24,500
6"
355,6
47,6
215,9
222,2
170,7
66,7
292,1
12
28,6
29,500
8"
419,1
55,6
269,9
273,0
221,5
76,2
349,2
12
31,7
43,000
10"
508,0
63,5
323,8
342,8
276,3
85,7
431,8
16
34,9
70,000
12"
558,8
66,7
381,0
400,0
327,1
92,1
488,9
20
34,9
86,000
14"
603,2
69,8
412,7
431,8
359,1
93,7
527,0
20
38,1
100,000
16"
685,8
76,2
469,9
495,3
410,5
106,4
603,2
20
41,3
142,000
18"
742,9
82,5
533,4
546,1
461,8
117,5
654,0
20
44,4
175,000
20"
812,8
88,9
584,2
609,6
513,1
127,0
723,9
24
44,4
232,000
22"
869,9
95,2
641,2
666,7
564,4
133,3
777,9
24
47,6
292,000
24"
939,8
101,6
692,1
717,5
615,9
139,7
838,2
24
50,8
330,000
NOTE:
1. Class 600 flanges except Lap Joint will be furnished with 0.25 (6.35mm) raised face, which is not included in ‘Thickness’ (C) and ‘Length through Hub’ (Y1), (Y3).
2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees.
3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.
4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C).
5. Dimensions of sizes 1/2 through 3 1/2 are the same as for Class 400 Flanges.
6. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer’s option.
