  DIN 40 BAR FLANGE
stampa

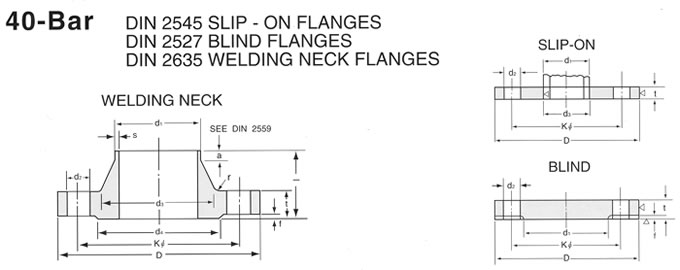

DIN 40 BAR FLANGE DRAWING, SHANDONG HYUPSHIN FLANGES CO., LTD
HYUPSHIN FLANGES
1. 기준: DIN2545, DIN2635, DIN2527
2. 종류: SO PLATE, WNRF, BLIND
3. 압력등급:
40 BAR
4. 사이즈:
15A - 2000A
5. 강철:
SS400, SF440A, SF390A
6. 생산공예:
Forged

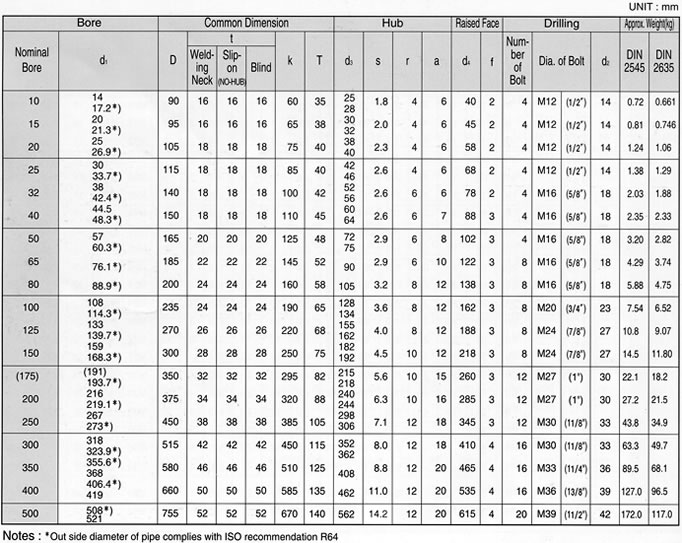

DIN 40 BAR FLANGE SPECIFICATION, SHANDONG HYUPSHIN FLANGES CO., LTD
